Applications of high damping mounts/sheets

(1) Applications in daily life:

  • A: Treadmills: HD-650 high damping sheets used on a treadmill can eliminate the vibration and noise. Thus, the people living on the next floor will not be disturbed by the treadmill.

    • A1: A treadmill
    • Hai Damp®HD-650

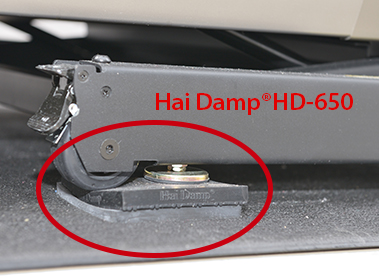

      A2: The leg part equipped with HD-650 sheet
  • B: Air condition machine on the roof of building: HD-750/HD-850 high damping sheets can eliminate the low-frequency vibration and noises.

    • B1: Air condition machine on the roof.
    • Hai Damp®HD-750

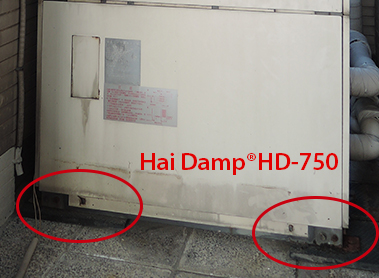

      B2: The machine leg equipped with HD-750 sheet.

(2) Applications for various machines:

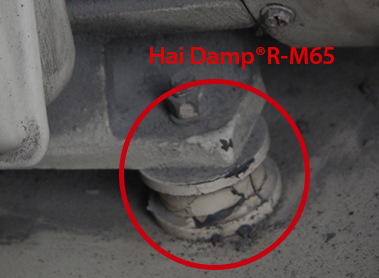

  • C1: Motors
    R-M30 , RM-75or R-M90 vibration mounts can achieve the best damping effect for various motors in operation.
    Hai Damp®R-M65
    C1:Hai Damp®R-M65

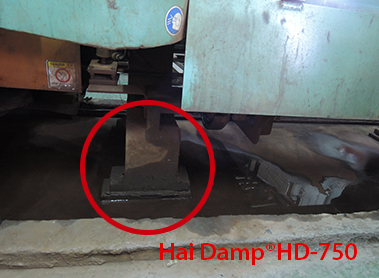

  • C2:Cutting machine (3 tones in weight)
    HD-750 high damping sheet can eliminate the vibration of the cutting knife and keep the precision of the cutted products
    Hai Damp®HD-750
    C2:Hai Damp®HD-750

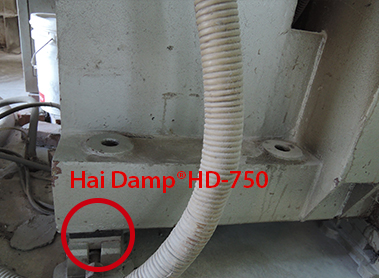

  • D1: Mixing roller (2.5 tons in weight)
    HD-750 high damping sheet can eliminate the vibration and the noises of the machine while in operation.
    Hai Damp®HD-750
    D1:Hai Damp®HD-750

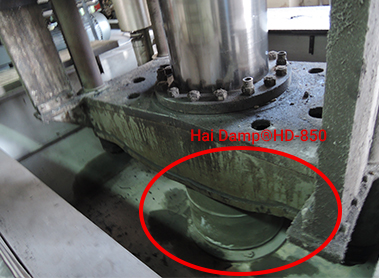

  • E1: Compressing molding machine (120 tones in weight) HD-850 high damping sheet can eliminate the huge vibration while the molds are opened or closed.
    Hai Damp®HD-750
    E1:Hai Damp®HD-850
  • F1: Plastic injection machine (30~100 tones in weight) R-130/R-185 high damping mounts can eliminate the huge vibration while the molds are opened or closed.

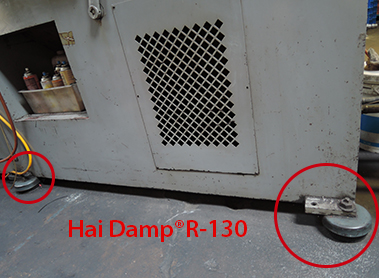

  • F2:Plastic injection machine feet equipped with R-130/R-185 high damping mounts.

    • F1: Plastic injection machine
    • Hai Damp®R-130
      F2: Hai Damp®R-130

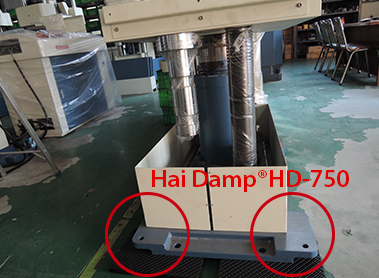

  • G1:Tensile test machine (15 tones in weight)
    HD-750 high damping sheet can eliminate the vibration and the noises of the machine while the testing material is broken.
    Hai Damp®HD-750
    G1:Hai Damp®HD-750

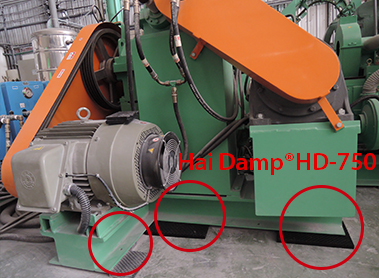

  • H:Pelletizing machine (2 tones in weight)
    The base of pelletizing machine with 3 point areas equipped with HD-750 high damping sheet to eliminate the vibration while in operation.
    Hai Damp®HD-750
    H:Hai Damp®HD-750

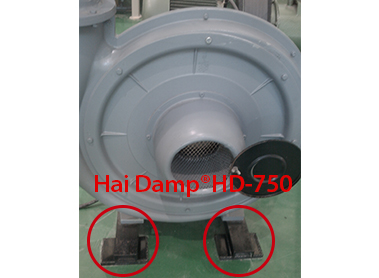

  • I:Blowers
    S-HT800 high damping sheet can eliminate the vibration and the noises of the machine while in operation.
    Hai Damp®HD-750
    I:Hai Damp®HD-750

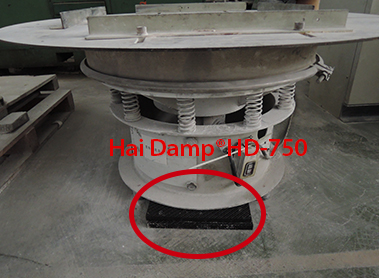

  • J1:Vibration platform (0.8 tones in weight)
    The base of the vibration platform equipped with HD-750 high damping sheet can eliminate the vibration and the noises of the machine while in operation.
    Hai Damp®HD-750
    J1:Hai Damp®HD-750

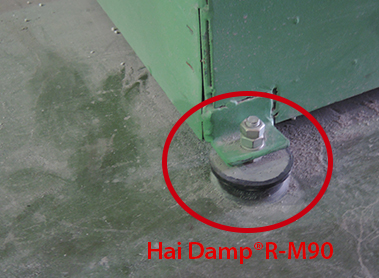

  • K1:Light conveying machine (1.5 tones in weight) The base of light conveying machine equipped with R-90 high damping mounts can eliminate the vibration while in operation
    Hai Damp®R-M90
    K1:Hai Damp®R-M90

(3) Applications in electronics and optoelectronics industry:

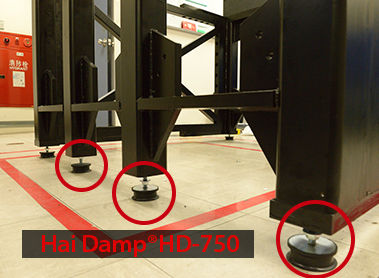

  • L1:The elimination of mask platform vibration for electronic semiconductors Using Hai Damp ® Series HD650 and R-90 as vibration pads and mounts in mask platform can achieve the best damping effect for the whole system Therefore, the excellent precision of mask platform can be achieved.
  • L2:R-90 vibration mounts Damping mechanism in the mask platform.

    • L1: Mask platform
    • Hai Damp®R-M90
      L2: Hai Damp®R-M90

(4) Damping material for audio equipments:

  • M1:CD audio equipment combinations

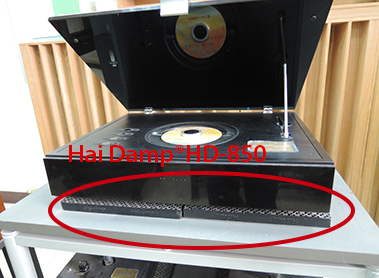

  • M2:Using HD-850 as damping pad to eliminate micro vibration of CD player can achieve the best noise elimination effects and improve the overall sound experience.

    • M1: CD audio equipment combinations
    • Hai Damp®HD-850
      M2: Hai Damp®HD-850

(5) Applications in the other fields:

  • N1:Soft champagne hammers Using HD-750 as a Soft champagne hammer can avoid inadvertently knocking broken in floor tiles construction. Also, it can be used to hit the crabs in the restaurant and the crabs will not be crushed to many pieces. Therefore, consumers can easily peel the shell of the crabs.

    • N1
    • N1
  • N2:Sports Equipment(1): Tennis racket grips
    Using HD-65 as a tennis racket grips can absorb the vibration from racket to avoid arm injury.

    N2
  • N3:Sports Equipment(2): The hitting area of hockey stick
    Using HD-65 as a patch in the hitting area of hockey stick can achieve the best damping effect and provide superior ball control stability.

    N3
